Overview:
The STREL-Q VIBRATORY STRESS RELIEVING (VSR-AT) system is a specialized engineering solution designed to stabilize metal components and fabrications. Manufactured by FlexTool Equipment Pvt Ltd, this system provides highly effective residual stress relief, ensuring dimensional stability for critical parts.

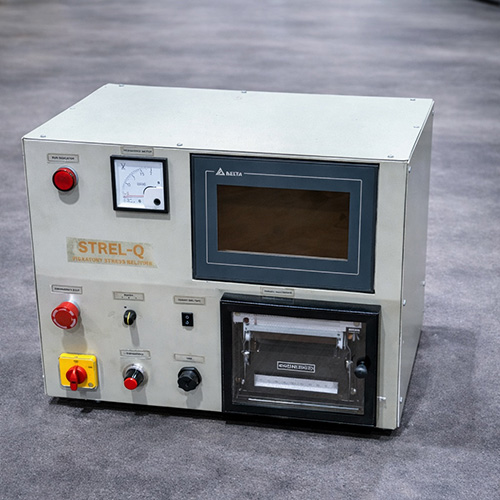

Technical Specifications: Control Panel
Designed for precision and ease of use, the STREL-Q control panel features the following specifications:
- Input Power: 220V, 1Ph, 50Hz
- User Interface : 7 Inch HMI
- Sensor Type : Displacement (0-6000μ)
- Operating Frequency : 10-100Hz Variable
- Process Timer : Settable from 0-99.9 Minutes
- Data Logging : Continuous Chart from Chart Recorder (Amplitude V/S Time Chart)
- Resonance Meter : Analog Type
- Mode of Operation : Manual
Standard Accessories

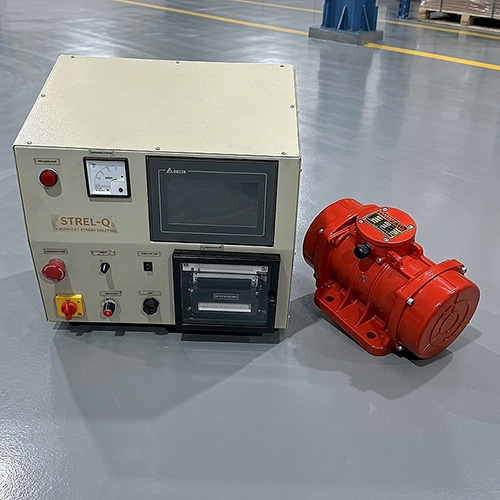

The STREL-Q (VSR-AT) comes fully equipped with the necessary hardware to secure and treat your workpieces effectively:
- Vibration Exciter: Model VSRE-05 (Max Up To 7 Tons of Job), featuring a vibration exciter suitable for jobs up to 5 tons.
- Small C-Clamps : 2 Nos
- Large C-Clamps : 2 Nos
- Rubber Set : 8 Nos
- Input/Output Cable : 5 Mtrs. Long
Advantages & Benefits of Vibratory Stress Relieving (VSR)
(Note: VSR is a proven alternative to traditional thermal stress relief, offering distinct operational advantages.)
-
Superior Dimensional Satbility : Effectively neutralizes residual internal stresses introduced during welding, casting, or heavy machining, preventing part distortion over time. -
Massive Energy Savings : Consumes a fraction of the electricity required by heavy-duty thermal furnaces, drastically reducing your operational carbon footprint and utility costs.
-
Time Efficiency : Condenses the stress-relieving process from hours or days (heating, soaking, and cooling cycles) to a matter of minutes.
-
Clean process : VSR is a cold process. It eliminates the risk of scaling, oxidation, metallurgical degradation, or discoloration associated with heat treatments.
-
High Portability : Rather than transporting massive, heavy fabrications to a distant thermal furnace, the VSR equipment can be brought directly to the shop floor or job site to treat the component in place.
