Overview:

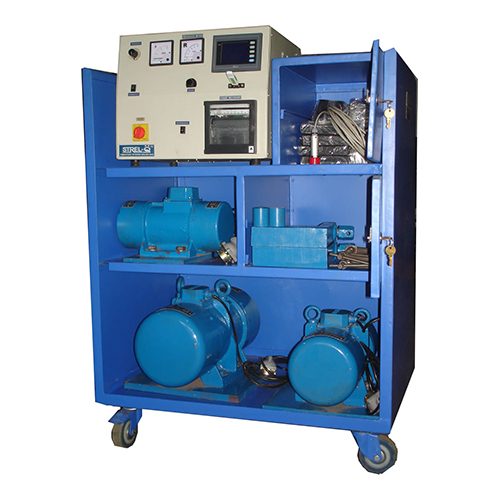

The STREL-Q VIBRATORY STRESS RELIEVING (VSR-AF) system is an advanced engineering solution designed to stabilize metal components and fabrications. Manufactured by Flex Tool Equipment Pvt Ltd, this system provides highly effective residual stress relief to ensure the dimensional stability of critical parts, featuring upgraded automation and data logging capabilities.
Technical Specifications: Control Panel
Designed for precision, data tracking, and ease of use, the STREL-Q (VSR-AF) control panel features the following specifications:
- Input Power: 220V, 1Ph, 50Hz
- User Interface : 7 Inch HMI
- Sensor Type : Displacement (0-6000μ)
- Operating Frequency : 10-100Hz Variable
- Process Timer : 0-99.9 Min Settable
- Amplitude V/S Time Chart :Continuous Chart from Chart Recorder
- Amplitude V/S Frequency :Plot Using Software Provided With The Machine
- Resonance Meter : Analog Type
- Mode of Operation : Manual & Auto
- Data Logging : Data Logging in .CSV Format
Standard Accessories
The STREL-Q (VSR-AF) comes fully equipped with the hardware required to secure and treat a wide range of workpiece sizes
- VSRE-05 (Max Upto 7 Tons of Job): Vibration Exciter Suitable for Up To 5 Tons
- VSRE-20 (Beyond 5 Tons of Job) : Vibration Exciter Suitable for Up To 20 Tons
- C-Clamp Small : 2 Nos
- C-Clamp Large : 2 Nos
- Rubber Set : 8 Nos
- Input/Output Cable : 5 Mtrs. Long
Advantages & Benefits of Vibratory Stress Relieving (VSR)
(Note: VSR is a proven alternative to traditional thermal stress relief, offering distinct operational advantages.)
-
Superior Dimensional Satbility : Effectively neutralizes residual internal stresses introduced during welding, casting, or heavy machining, preventing part distortion over time and ensuring tighter machining tolerances. -
Comprehensive Data Tracking : The VSR-AF model allows for plotting Amplitude vs. Frequency via included software and exports data in .CSV format, enabling strict quality control and easy reporting.
-
Massive Energy Savings : Consumes only a fraction of the electricity required by heavy-duty thermal furnaces, drastically reducing your operational carbon footprint and utility costs.
-
Time Efficiency : Condenses the stress-relieving process from hours or days (which typically involve long heating, soaking, and cooling cycles) to a matter of minutes.
-
Clean, Cold Process : VSR eliminates the risk of scaling, oxidation, metallurgical degradation, or discoloration that is commonly associated with heat treatments.
-
High Portability : Rather than transporting massive, heavy fabrications to a distant thermal furnace, the VSR equipment can be brought directly to the shop floor or job site to treat the component in place.
